| PART NUMBER | 1021403254 |
| PART MODEL | 3200T0400S05ER00H |
| PART CATALOG | ZOOMLION Electronic Spare Parts |
| APPLICABLE TO | ZOOMLION cranes |
| PART NUMBER | 1021403254 |
| PART MODEL | 3200T0400S05ER00H |
| PART CATALOG | ZOOMLION Electronic Spare Parts |
| APPLICABLE TO | ZOOMLION cranes |
| MOQ | 1 PCS |
| STOCK STATUS | In stock |
| GENUINE OR OEM | ZOOMLION genuine parts |
| SHIPPING METHOD | Fedex DHL UPS , SEA, AIR.... |
| PAYMENT METHOD | WESTER UNION, T/T, Alipay, WeChat, WISE, WorldFirst |
🟢 Original ZOOMLION OEM component engineered by Gems Sensors for superior signal stability in crane applications.
🟢 Utilizes advanced thin-film sensing technology to provide consistent 0.5-4.5V output under extreme temperatures.
🟢 High-burst pressure rating (400 Bar nominal) ensures safety during rapid hydraulic extension and retraction cycles.
🟢 Rugged stainless steel housing and M12 connector interface are designed for IP67-rated moisture and dust protection.
🟢 Optimized for seamless integration with ZOOMLION’s on-board LMI/SLI safety systems for accurate load sensing.

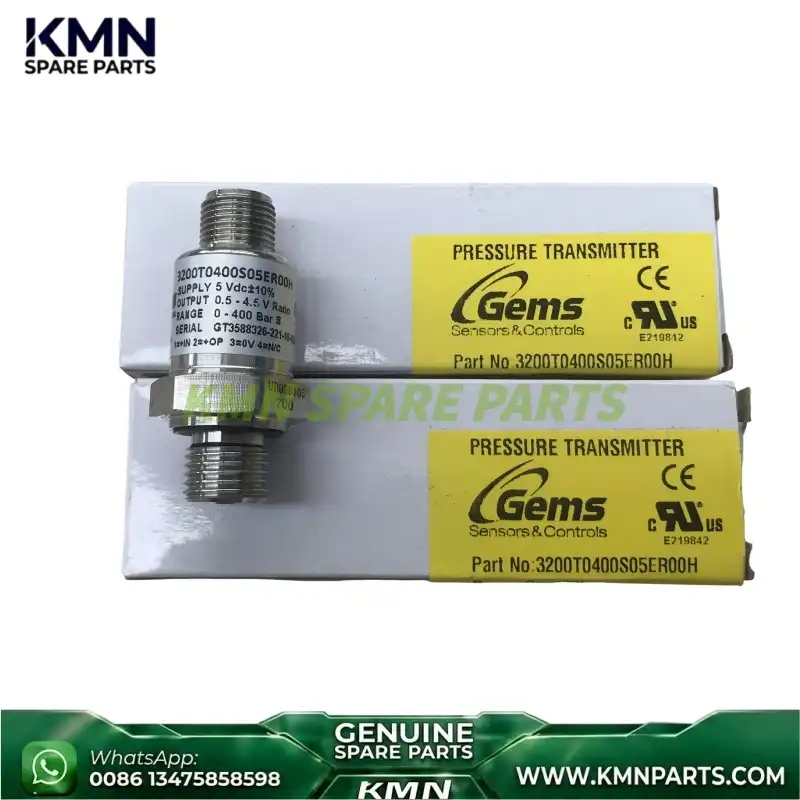

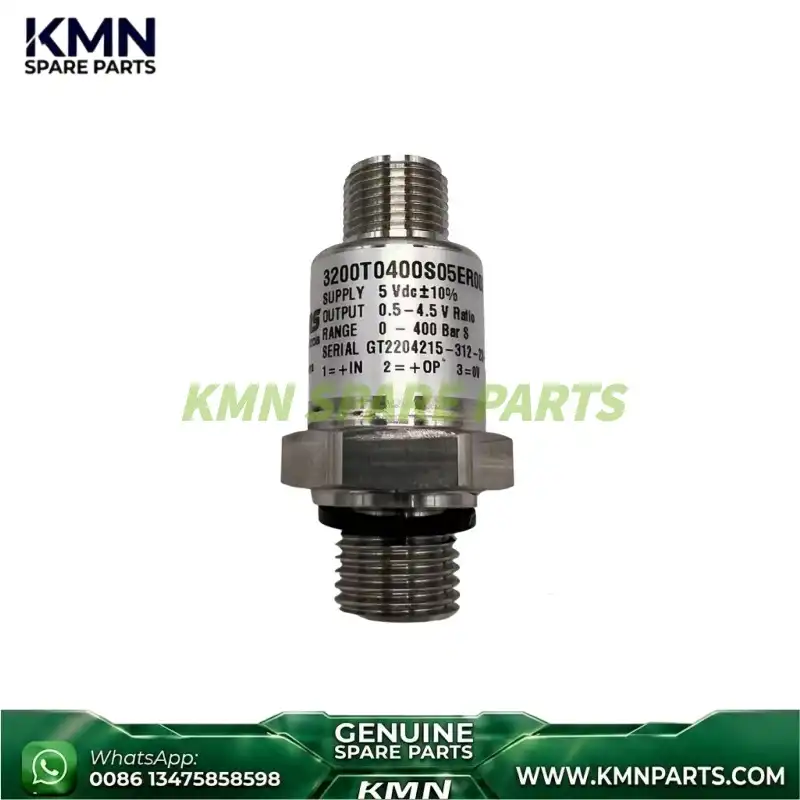

🟠 Part Name: ZOOMLION Pressure Transmitter / Sensor
🟠 Part Number: 1021403254
🟠 OEM Technical Model: Gems 3200T0400S05ER00H / 3200TD400SD5ERDDZN1
🟠 Nominal Pressure Range: 0 ~ 400 bar (40 MPa)
🟠 Supply Voltage: 5 Vdc ± 10% (Precision Excitation)
🟠 Output Signal: 0.5 – 4.5 V Ratio (Analog Voltage)
🟠 Electrical Interface: M12 Connector (Pinout: 1=+IN, 2=+OP, 3=0V)
🟠 Compatible Crane Models: ZOOMLION QY25V, QY50V, ZTC250H, ZTC350V, ZTC550, ZTC800H, ZTC1000
🟠 Primary Installation Site: Main Telescopic Cylinder / Boom Extension Hydraulic Manifold
🟢 100% Genuine ZOOMLION / Gems factory parts guarantee original equipment calibration and safety.
🟢 Immediate warehouse availability for P/N 1021403254 prevents downtime in heavy lifting operations.
🟢 Expert technical support provided to verify sensor pinout and signal compatibility with your machine’s LMI.
🟢 Competitive global wholesale pricing for fleet maintenance centers and heavy machinery distributors.
🟢 Export-certified shock-proof packaging to ensure sensitive electronics are protected during air or sea transit.
⭐ Step 1: Confirm your part number matches 1021403254 or the OEM code 3200T0400S05ER00H.
⭐ Step 2: Click the “Ask For Quote” button on this page to submit your required quantity and destination.
⭐ Step 3: Our ZOOMLION crane parts specialist will send a formal proforma invoice with shipping costs within 2 hours.
⭐ Step 4: Finalize payment via secure channels (T/T, Credit Card, or Western Union).
⭐ Step 5: Receive your tracking number immediately after the package leaves our central warehouse.
