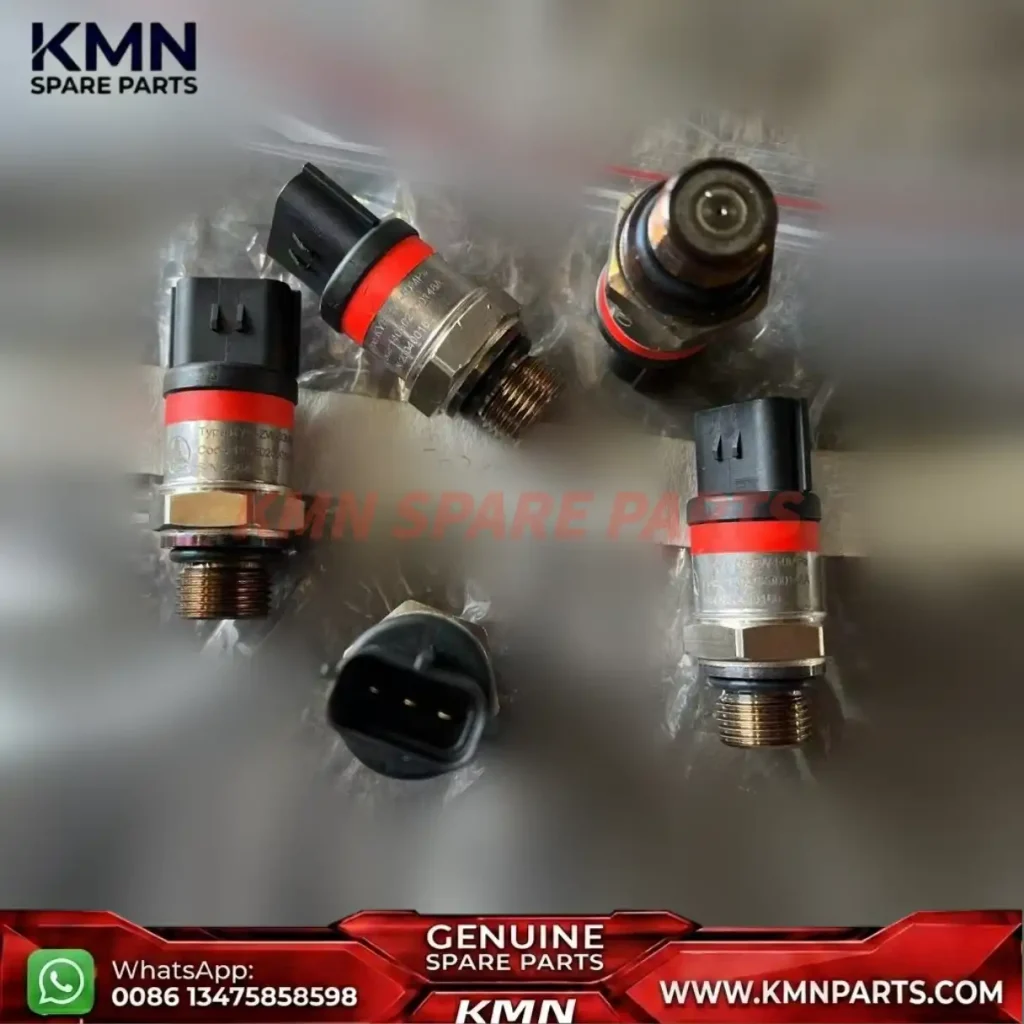

Genuine SANY 140502000148A Pressure Transducer | 50MPa High-Pressure Monitoring Solution

Dedicated Technical Support & Original Industry Standards

🔴 Engineered specifically for SANY’s high-pressure hydraulic circuits to deliver ±0.5% F.S. accuracy.
🔴 Features the specialized 50MPa-5V-V2-G3/8-Q technical configuration for perfect system alignment.
🔴 Robust stainless steel construction provides exceptional resistance against hydraulic surges and cavitation.
🔴 Advanced electronic core design minimizes signal noise even in high-electromagnetic interference zones.
🔴 OEM-standard G3/8 thread connection ensures a leak-proof seal and simplified field installation.

SANY 140502000148A Technical Data & Machine Compatibility

🟠 Part Name: SANY Pressure Transducer / Sensor
🟠 Part Number: 140502000148A
🟠 Technical Model: 50MPa-5V-V2-G3/8-Q
🟠 Nominal Pressure Range: 0 ~ 50 MPa (500 bar)
🟠 Input Voltage: 5V DC
🟠 Thread Connection: G3/8 (Standard Hydraulic Interface)
🟠 Compatible Excavator Models: SANY SY215H, SY365H, SY485H, SY550H Series
🟠 Compatible Loader Models: SANY SW955K-S, SW956K Series
🟠 Primary Installation Site: Main Pump Discharge / Control Valve Block

Advantages of Ordering from KMN Spare Parts

🔴 100% Genuine SANY electronic components ensure full compatibility with on-board ECU firmware.
🔴 Readily available inventory for 140502000148A minimizes costly machine downtime on job sites.
🔴 Technical validation service provided: we cross-reference your machine serial number before shipping.
🔴 Wholesale factory-direct pricing for international fleet owners and heavy equipment dealers.
🔴 Protective moisture-proof and shock-resistant packaging tailored for delicate electronic sensors.

Step-by-Step Guide to Receive a Quick Quote

⭐ Step 1: Confirm your original part number matches 140502000148A or provide your machine’s Serial Number.
⭐ Step 2: Click the “Ask For Quote” button on this page to submit your required quantity and destination.
⭐ Step 3: Our SANY parts specialist will send a formal proforma invoice with shipping costs within 2 hours.
⭐ Step 4: Finalize payment via secure channels (T/T, Credit Card, or Western Union).
⭐ Step 5: Receive your tracking number immediately after the package leaves our central warehouse.

How to contact us quickly

“Ask For Quote” at the bottom right corner of the webpage to start WhatsApp.

📧 E-mail: info@kmnparts.com
📞 Mobile Call: +86 1347 5858 598 (WhatsApp/WeChat)
🏬 Central Headquarter: No 51, Taiping Road, Qingdao City, CHINA
🔶 Branch Office (XCMG WIKA): Xuhai Road, Jiawang District, Xuzhou City, CHINA
🔶 Branch Office (ZOOMLION SANY): Kaiyuan Road, Changsha City, CHINA
🔶 Branch Office (SEM WEICHAI SHANTUI): Caterpillar Industrial Park, Qingzhou, CHINA

QZJ004727204 Swing Mechanism

1 A210111000088 Bolt 3
2 A210401000017 Spring Washer 3
3 A210405000007 Washer 3
4 10663895 Gear Cover Natural Color 1
10663895YA Gear Cover Sany yellow
10663895WH Gear Cover Traffic White
5 A210401000002 Spring Washer 24
6 A210204000025 Screw 24
7 61007757 Slewing Bearing 1
8 A210110000302 Bolt 48
9 A210110000358 Bolt 48
10 130104000149B Reducer 1 6-8

130104000149B Reducer

1 130188000429A Output Gear Shaft 1
2 130188000497A Ring, Retainer 1
3 130188000506A Oil Retaining Ring 1
4 130188000442A Self-aligning Roller Bearing 1
5 130188000498A Retaining Ring 1
6 130188000470A Circlips for Shaft 1
7 130188000460A Base, Bearing 1
8 130188000481A O-ring Seal 1
9 130188000425A Screw 4
10 130188000427A Hexagon Socket Taper Magnetic Screw Plug 2
11 130188000473A Combined Sealing Washer 4
12 130188000557A Internal Ring Gear 1
13 130188000449A Roller Bearing 1
14 130188000516A Planet Carrier 1
15 130188000432A Gear，Sun 1
16 130188000468A Shaft Elastic Retaining Ring 1
17 130188000453A Cylinder Roller Bearing 3
18 130188000526A Planet Gear 3
19 130188000466A Shaft Elastic Retaining Ring 3
20 130188000517A Carrier, Planet 1
21 130188000452A Cylindrical Roller Bearing 3
22 130188000527A Planet Gear 3
23 130188000465A Ring, Retainer, Elastic 3
24 130188000492A Drive Line 1
25 130188000482A O-ring 2
26 130188000428A Inner, Clutch 3
27 130188000553A The Sealing Ring 2
28 130188000487A X-ring 1
29 130188000554A The Sealing Ring 2
30 130188000489A X-ring 1
31 130188000475A Spring 12
32 130188000474A Spring 8
33 130188000480A O-ring Seal 1
34 130188000551A Motor Seat 1
35 130188000479A Ventilation Valve 1
36 130188000424A Screw 12
37 130188000562A Socket Head Screw 1
38 130188000472A Combined Sealing Washer 1
39 130188000534A Piston 1
40 130188000444A Outer, Clutch 4
