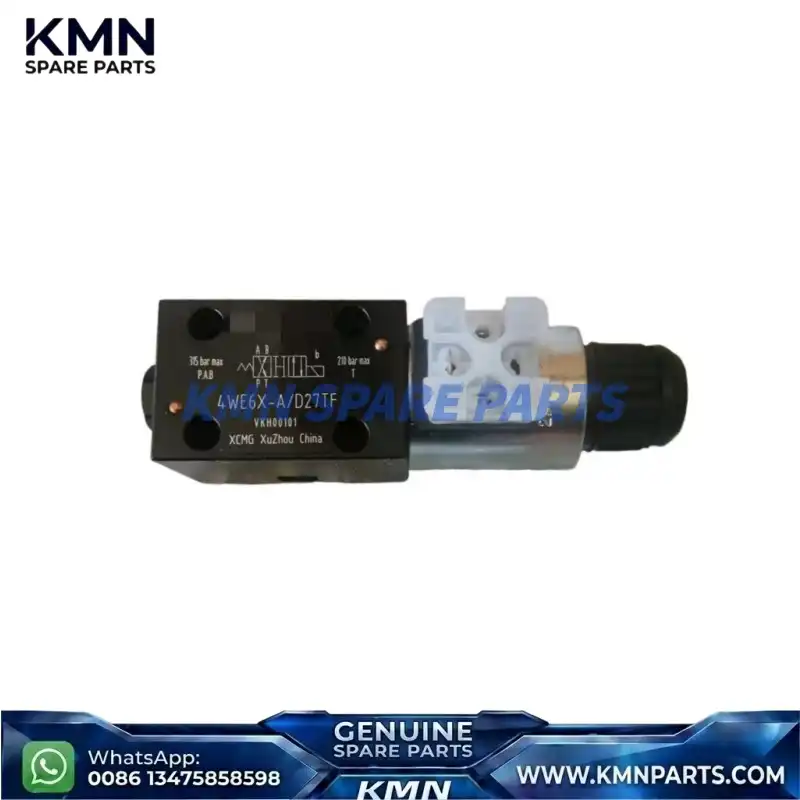

Official XCMG 860592536 Solenoid Valve | GR215 Motor Grader

Dedicated Technical Support & Original Industry Standards

🔵 Engineered to XCMG’s precise factory specifications for high-load road machinery operations.

🔵 Provides highly responsive directional control to ensure smooth movement of the grader’s moldboard and steering.

🔵 100% original factory unit ensures long-term hydraulic stability and eliminates electrical interface mismatches.

XCMG 860592536 Compatibility & Specifications

🔵 Component Designation: Solenoid Valve (Directional Control)

🔵 Part Number: 860592536

🔵 Manufacturer Model: 4WE6X-A/D27TF

🔵 Compatibility: XCMG GR165, GR180, GR215, and GR Series Motor Graders

🔵 Operating Condition: 100% Brand New Original Factory Inventory

Advantages of Ordering from KMN Spare Parts

✅ Guaranteed Factory Authenticity: 100% original, factory-verified parts.

✅ Expert VIN Verification: Technical cross-reference via official databases.

✅ Highly Competitive Bulk Rates: Tiered pricing for fleet managers.

✅ Rapid Global Shipping: Express couriers (DHL/UPS/FedEx) or sea/air freight.

✅ Strategic Warehousing: Fast dispatch from major Chinese manufacturing hubs.

Step-by-Step Guide to Receive a Quick Quote

⭐ Step 1: Share machine model, serial number (VIN), or a photo of the nameplate.

⭐ Step 2: Confirm required material number and desired order quantity.

⭐ Step 3: Provide target delivery country and postal code for freight estimation.

⭐ Step 4: Share China-based forwarder details if local delivery is required.

How to contact us quickly

“Ask For Quote” at the bottom right corner of the webpage to start WhatsApp.

📧 E-mail: info@kmnparts.com

📞 Mobile Call: +86 1347 5858 598 (WhatsApp/WeChat)

🏬 Central Headquarter: No 51, Taiping Road, Qingdao City, CHINA

🔶 Branch Office (XCMG WIKA): Xuhai Road, Jiawang District, Xuzhou City, CHINA

🔶 Branch Office (ZOOMLION SANY): Kaiyuan Road, Changsha City, CHINA

🔶 Branch Office (SEM WEICHAI SHANTUI): Caterpillar Industrial Park, Qingzhou, CHINA

111201691 平衡重 Counterweight

1 111202050 配重 Counterweight 1

2 805000567 螺栓 M36×360 Bolt M36×300 5

3 805300047 垫圈 36 Washer 36 10

4 805200113 螺母 M36 Nut M36 5

5 805200159 扣紧螺母 M36 Nut M36 5

111201744 变幅油缸 Derricking Cylinder

1 QY25K5.28-01 缸筒 Cylinder 1

2 QY25K5.28-03 活塞 Piston 1

3 QY25K5.28-04 活塞杆 Rod 1

4 QY25K5.28-05 导向套 Front Cover 1

5 12103237 DAS 组合密封 Assemblyd Seal 1

6 12103844 O 型圈 170×5.7 O-Ring 170×5.7 4

7 12103845 O 型圈 240×8.6 O-Ring 240×8.6 1

8 12103826 斯特封 Assemblyd Seal 200×221×8.1

9 12103831 杆密封 Assemblyd Seal d200×225×18.2

10 12103830 防尘圈 Series Wiper d200×220×18

QY25K5.27 转台操纵 diagram for operating turntable

1 111000241 操纵杆总成 Lever assembly 1

2 111000242 连接体 Connecting body 10

3 111201693 拉杆总成 Pulling rod assembly 1

4 111201695 拉杆总成 Pulling rod assembly 1

5 111201697 转套 Shaft sleeve 1

6 111201704 转轴 shaft 1

7 111201706 拉杆总成 Pulling rod assembly 4

8 111000282 螺母杆 Nut rod 2

9 111201709 支架 bracket 1

10 111000272 转轴 Shaft 1

11 111000261 转套 Shaft sleeve 1

12 111000265 转套 Shaft sleeve 1

13 111000267 转套 Shaft sleeve 1

14 111000270 转套 Shaft sleeve 1

15 QY25K5.27.1 拉杆总成 Pulling rod assembly 4

16 111201722 槽钢 Channel steel 1

17 805000043 螺栓 M10×30 Bolt M10×30

18 805300014 垫圈 10 Washer10

19 805300017 垫圈 10 Washer10

20 805200048 螺母 M10 Nut M10

21 805600368 销轴 B10×35 Pin shaft B10×35

22 805600001 销 3.2×20 Pin3.2×20

23 805000137 螺栓 M8×40 Bolt M8×40

24 805200045 螺母 M8 Nut M8 3

25 110600914 弹簧 Spring 1
