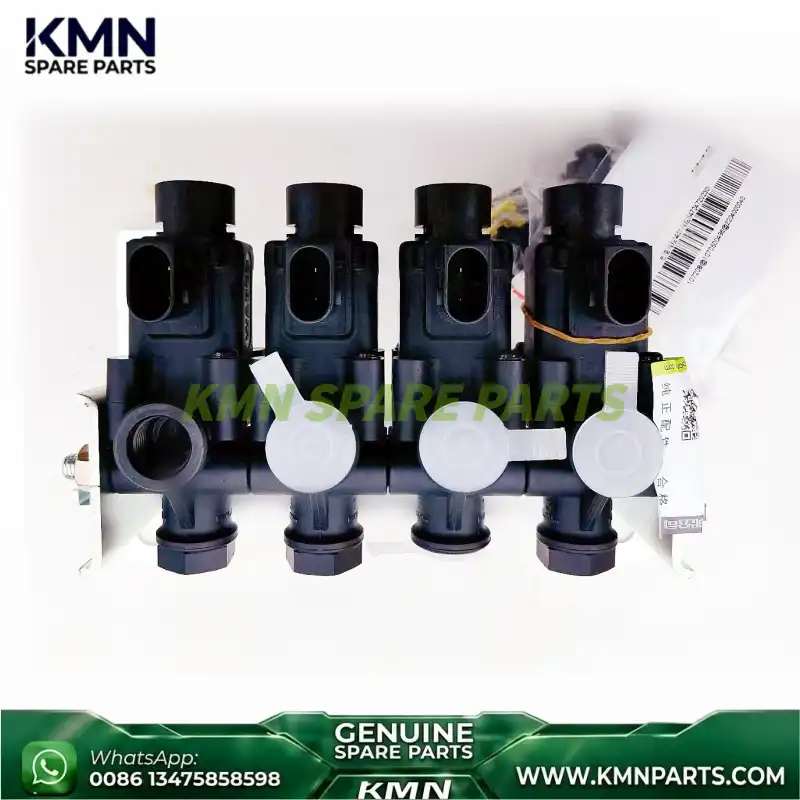

Authentic ZOOMLION 1070500496 Solenoid Valve Block | ZTC/ZAT Crane Chassis

Dedicated Technical Support & Original Industry Standards

🟢 Precision-engineered to Zoomlion’s strict chassis factory specifications for complex control logic.

🟢 Robust solenoid block design ensures rapid response times and minimizes internal pressure loss during heavy lifting.

🟢 100% original manufacturer component guarantees perfect fitment and prevents system malfunctions in critical crane operations.

ZOOMLION 1070500496 Compatibility & Specifications

🟢 Component Designation: Solenoid Valve Block (Chassis Control Unit)

🟢 Part Number: 1070500496

🟢 Manufacturer Model: ZOOMLION Official Genuine Part

🟢 Compatibility: Zoomlion ZTC1000, ZAT1200, ZLJ5603 and All Terrain Crane Chassis

🟢 Operating Condition: 100% Brand New Original Factory Inventory

Advantages of Ordering from KMN Spare Parts

✅ Guaranteed Factory Authenticity: 100% original, factory-verified parts.

✅ Expert VIN Verification: Technical cross-reference via official databases.

✅ Highly Competitive Bulk Rates: Tiered pricing for fleet managers.

✅ Rapid Global Shipping: Express couriers (DHL/UPS/FedEx) or sea/air freight.

✅ Strategic Warehousing: Fast dispatch from major Chinese manufacturing hubs.

Step-by-Step Guide to Receive a Quick Quote

⭐ Step 1: Share machine model, serial number (VIN), or a photo of the nameplate.

⭐ Step 2: Confirm required material number and desired order quantity.

⭐ Step 3: Provide target delivery country and postal code for freight estimation.

⭐ Step 4: Share China-based forwarder details if local delivery is required.

How to contact us quickly

“Ask For Quote” at the bottom right corner of the webpage to start WhatsApp.

📧 E-mail: info@kmnparts.com

📞 Mobile Call: +86 1347 5858 598 (WhatsApp/WeChat)

🏬 Central Headquarter: No 51, Taiping Road, Qingdao City, CHINA

🔶 Branch Office (XCMG WIKA): Xuhai Road, Jiawang District, Xuzhou City, CHINA

🔶 Branch Office (ZOOMLION SANY): Kaiyuan Road, Changsha City, CHINA

🔶 Branch Office (SEM WEICHAI SHANTUI): Caterpillar Industrial Park, Qingzhou, CHINA

Hydraulic oil tank installation D00631254810400000Z

1 1040000051 Bolt M20*45 – 8.8 GB/T5783-2000 4
2 1040300038 Gasket 20 GB/T93-1987 4
3 1040300106 Gasket 20 – 200HV GB/T97.1-2002 4
4 00631254810401010 Gasket δ2 2
5 202230016 Loctite adhesive 0.02kg
6 1040200097 Nut M20 – 8 GB/T6170-2000 4

Oil pump transmission device D00631143920000000Z

1 1040000122 Bolt M10×35 – 8.8 GB/T5783-2000 6
2 1040200113 Nut M10 – 8 GB/T6170-2000 6
3 1040300067 Gasket 10 GB/T93-1987 6
4 00631143920200000 Oil pump drive shaft 1
5 1140101621 Connecting plate 1
6 1040000107 Bolt M6×20 – 8.8 GB/T5783-2000 6
7 1040300062 Gasket 6 GB/T93-1987 6
8 00633283900001090 Rag ring 1
9 00633283900001070 Paper pad δ0.5 1
10 00633283900001080 Cover 1
11 1040300125 Guard ring 80 GB/T893.1-1986 1
12 1050200109 Rolling bearing 6010 GB276-1994 (deep) 1
13 00633283900001040 Cover 1
14 00633283900001060 Paper pad δ0.5 1
15 1040300018 Guard ring 50 GB/T894.1-1986 1
16 1040600012 Common flat key 8×22 GB1096-1979 1
17 1010000082 Four-stage gear pump 1
18 1080000001 Oil cup M10×1 GB1152-1979 2 19 00631143900200000 Oil pump bracket 1
20 1040000154 Bolt M12×55-8.8 GB/T5783-2000 4
21 1040300054 Washer 12 GB/T93-1987 6
22 1040200096 Nut M12-8 GB/T6170-2000 6
23 1040000177 Bolt M16×55-8.8 GB/T5783-2000 4
24 1040300065 Washer 16 GB/T93-1987 4
25 1040200110 Nut M16-8 GB/T6170-2000 4
26 00631143910001010 Bent plate 1
27 00631143910001020 Bent plate 1
28 1040000094 Bolt M12×35-8.8 GB/T5783-2000 2
29 1040300041 Washer 12-200HV GB/T97.1-2002 2
30 204110014 Lithium-based grease 1.0kg

Oil cooling device D00631147410000000Z

1 1040100059 Screw M10×20 – 8.8 GB/T70.1-2000 12
2 1040300067 Gasket 10 GB/T93-1987 12
3 1081000077 O-ring 65×3.1 GB1235-1976 1
4 00631147410200000 Return oil connector 1
5 1140215664 Hose assembly H-38×1W-1450(L42)-◎ 1
6 00631147410600000 Radiator connector 1
7 00631147410400000 Radiator connector 2
8 00631157400200000 Installation of oil cooler 1
9 1081000110 O-ring 44×3.1 GB1235-1976 2

Control room electrical D00631147800000000Z

1 00630876280200000 Dashboard assembly 1
2 00631326201400000 Dashboard and instrument panel mounting plate installation 1
3 00631147800600000 Instrument panel mounting plate assembly 1
4 1031700064 Electronic accelerator pedal assembly 1
5 00631146250001010 Handle mounting plate 2
6 00631326201200001 Hydraulic handle wiring diagram 1
7 00631146250001020 Right handle label 1
8 00656906210001040 Right electronic control box panel 2
10 1040100052 Screw M6×20 – 4.8 GB/T818-2000 3
11 1040300093 Washer 6-140HV GB/T96.1-2002 3
12 1040300062 Washer 6 GB/T93-1987 3
13 00630876220001010 Control handle label 1
14 00630876280001010 Control handle label 1
15 00631146250001030 Left handle label 1
16 00631326201600000 Armrest box panel installation 2
17 1139900023 Sunshade horizontal 1
18 00631256230001010 Working lamp mounting bracket 1
19 00631147800200000 Dashboard cable bundle 1

20 00631147800400000 Dashboard cable assembly 1
21 00631147800001010 Principle block diagram 1
22 1990200005 Nylon cable ties 4×200 (black) 80
23 00630876281200000 Electronic accelerator wire harness 1
