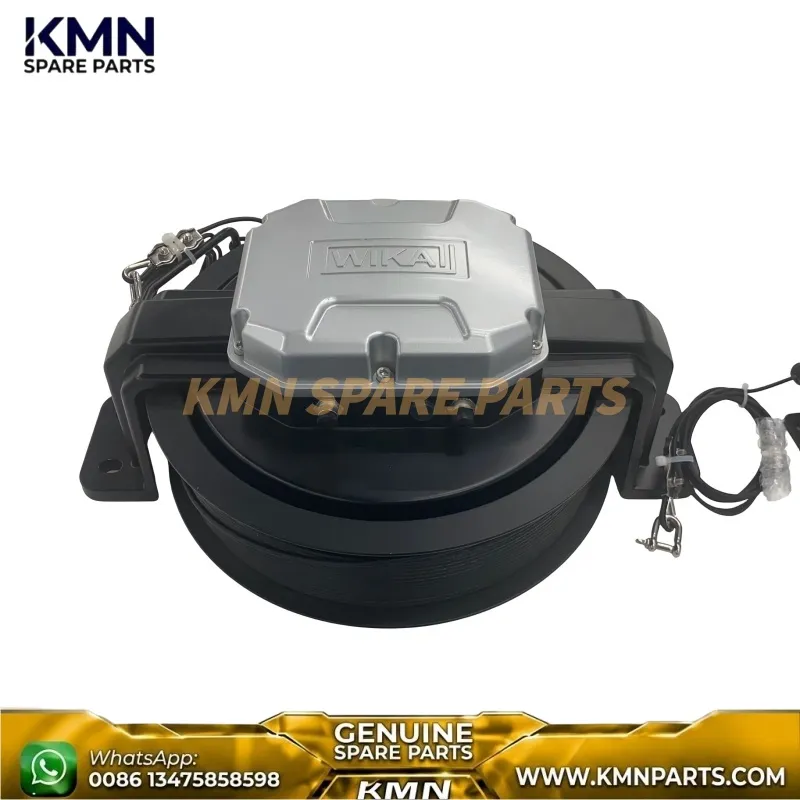

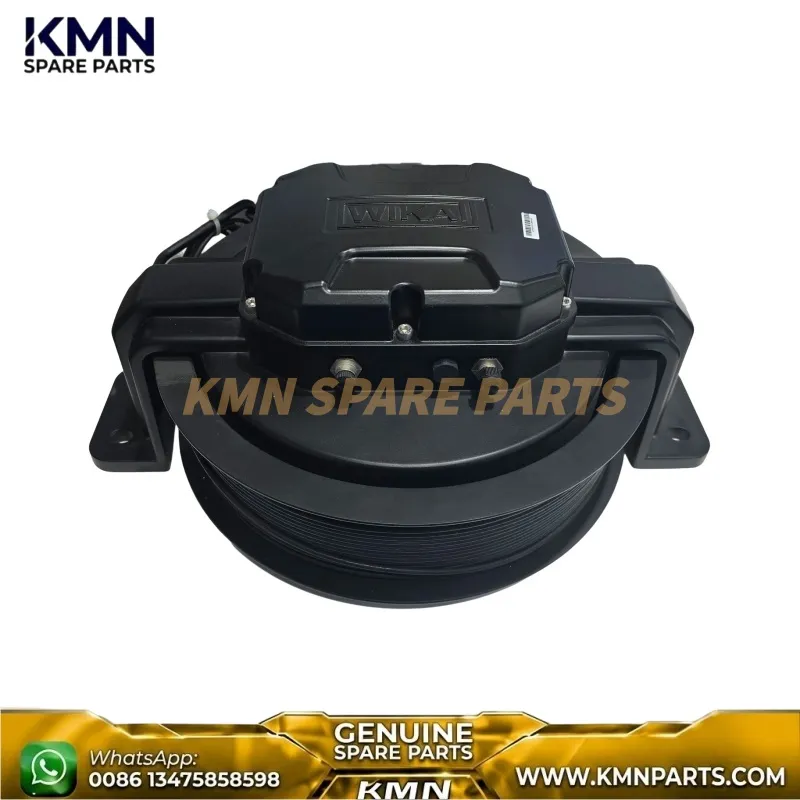

WIKA LWG650 Length and Angle Sensor for HIRSCHMANN Crane Control Systems
● Technical Support & Application Verification
●Integrated Measurement Units: The LWG650 Series consists of a length detection unit and an angle detection unit for combined length and inclination measurement.
●Non-Contact Length Measurement: The sensor uses a non-contact Hall-effect length measurement mechanism for telescopic mechanism applications.
●Built-In Signal Transmission: Multiple internal slip rings support signal transmission between the sensor assembly and the connected crane control system.
●Control and Protection Functions: The supplied technical information identifies temperature-range error compensation, vibration filtering, redundant expansion, fault diagnosis, port overvoltage protection, and reverse-polarity protection.
● LWG650 Application Match & Product Specifications
●Component Name: Length and Angle Sensor
●Product Model: LWG650 / LWG650 Series
●Application: Length measurement for telescopic mechanisms and inclination measurement for luffing mechanisms,Telescopic mobile cranes, telescopic aerial work platforms, and other construction machinery with telescopic and luffing mechanisms
●Supply Voltage: 10–36 V DC
●Signal Output: CANopen / 4–20 mA
●Maximum Stretching Speed: 1 m/s
●Length Measurement Range: 0–35 m / 0–45 m / 0–50 m
●Maximum Length Measurement: Up to 50 m
●Length Measurement Accuracy: ±0.5%FS
●Additional Chart Parameter: ±0.1%FS; the chart does not show the corresponding field name for this value.
●Temperature-Related Chart Parameter: ±0.01°/°C; the chart does not show the corresponding field name for this value.
