PART NUMBER
803500378
PART MODEL
803500378
PART CATALOG
XCMG Electronic Spare Parts
APPLICABLE TO
XCMG cranes
MOQ
1 PCS
STOCK STATUS
In stock
GENUINE OR OEM
XCMG genuine parts
SHIPPING METHOD
EXPRESS, SEA, AIR....
PAYMENT METHOD

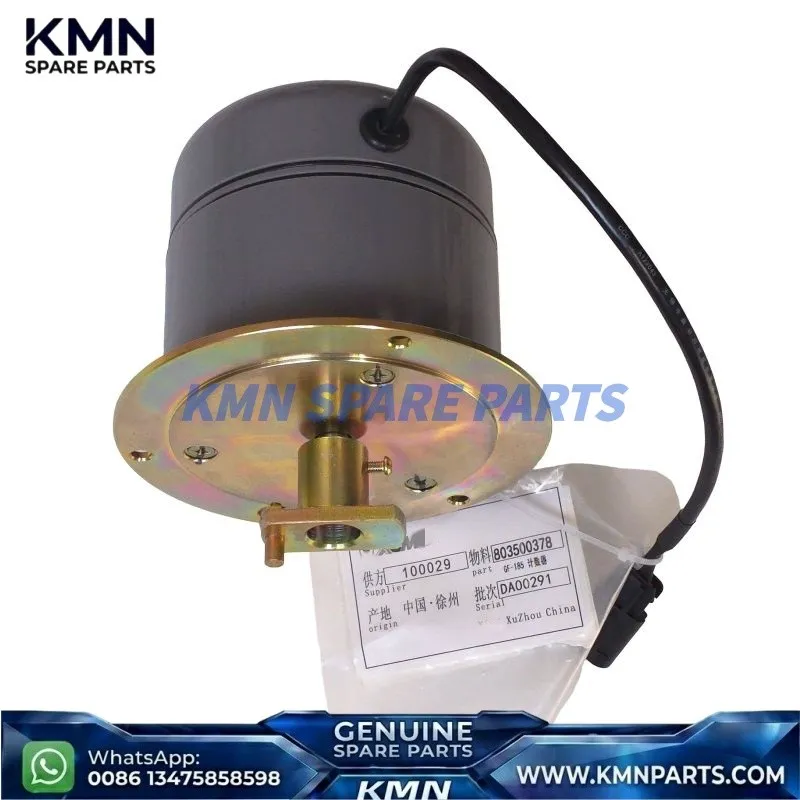

Genuine XCMG 803500378 GF-185 Counter for Crane Control Systems
🔵 Dedicated Technical Support & Application Verification
● Label-Identified XCMG Component: The XCMG label identifies material number 803500378 as a GF-185 counter and marks the item as a genuine XCMG spare part.
● Counting and Control Function: The GF-185 counter is associated with counting or monitoring functions within the crane electronic control system.
● Technical Compatibility Support: KMN can help verify the crane model, counter configuration, REC-SQ1000 connection, mounting arrangement, and control-system application before ordering.
🔵 Detailed XCMG 803500378 Application Match & Product Specifications
● Component Name: GF-185 Counter
● Part Number (P/N): 803500378
● Component Model: GF-185
● Associated Configuration: REC-SQ1000 (i:190) parallel
● Product Code: 100029
● Application System: XCMG crane counting and electronic control system
● Reported Equipment Compatibility: XCMG crane applications; the exact crane model is not shown on the label and must be confirmed before installation.

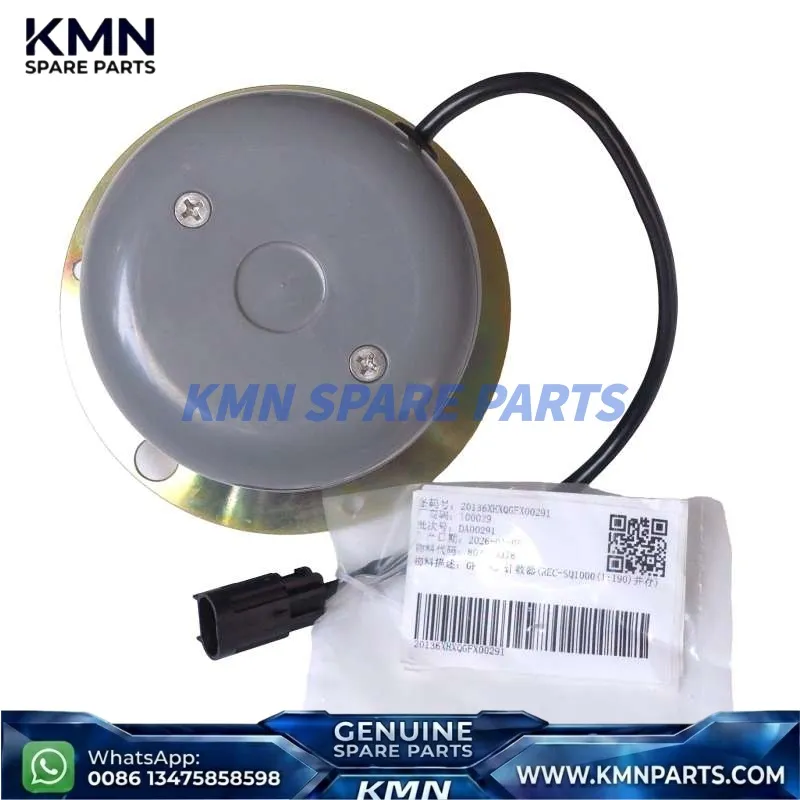

● Label Information: Batch No. DA00291; production date 2026-01-08; barcode No. 20136XHXQGFX00291.
● Product Status: XCMG genuine-part certificate label present; physical condition and exact configuration to be confirmed.
🔵 The KMN Advantage: Quality Parts, Global Reach
✅ Part identification based on the XCMG label, material number, component model, and associated configuration.
✅ Technical support for counter-system connections, installation details, and electronic-control matching.
✅ Compatibility review based on the complete crane model and parts-manual information.
✅ Pre-shipment confirmation of the product label, batch information, and available configuration details.
✅ One-stop sourcing support for XCMG crane electronic and control-system spare parts.
🔵 How to Request a Fast, Accurate Quote from KMN
⭐ Step 1: Send the P/N 803500378, model GF-185, and your complete XCMG crane model.
⭐ Step 2: Provide the REC-SQ1000 system information, product-label photo, or existing counter details if available.
⭐ Step 3: Confirm the required quantity and delivery destination.
⭐ Step 4: Confirm the order after verifying the counter configuration and machine compatibility.
