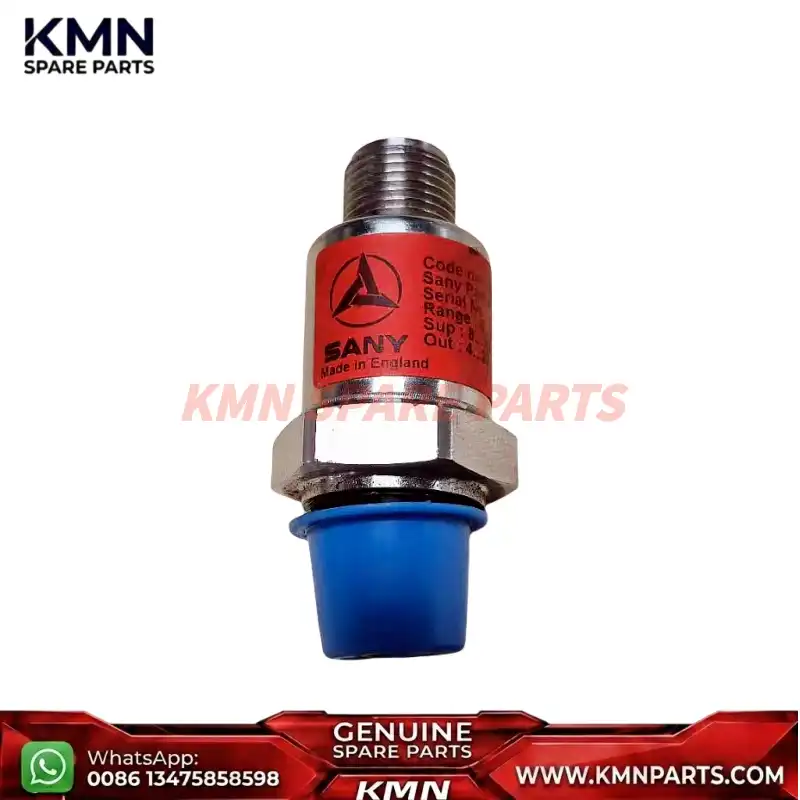

Genuine SANY 60238330 Pressure Transducer | 60MPa High-Pressure Sensor for Excavators

Dedicated Technical Support & Original Industry Standards

🔴 Engineered to meet the rigorous demands of SANY’s advanced hydraulic systems.
🔴 Utilizes high-stability piezoresistive technology for precise real-time pressure feedback.
🔴 Fully compliant with OEM technical requirements to ensure seamless integration with the machine’s ECU.
🔴 Each unit undergoes strict factory calibration to guarantee an accuracy level of ±0.5% F.S.
🔴 Built with a heavy-duty stainless steel housing (304/316L) to resist corrosion and extreme vibration.

SANY 60238330 Technical Data & Machine Compatibility

1) Part Name: SANY Pressure Transducer / Sensor
2) Part Number: 60238330
3) Nominal Pressure Range: 0 ~ 600 bar (60 MPa)
4) Rated Voltage: 24V DC (Operational range 10-30V DC)
5) Output Signal: 4-20 mA (Analog Current)
6) Thread Connection: G1/4″ (ISO 228 Standard)
7) Electrical Interface: M12 x 1, 4-pin (A-coding)
8) Protection Rating: IP67 / IP69K (Waterproof & Dustproof)
9) Compatible Machine Models: SANY SY215C, SY245, SY265, SY335H, SY365H, SY485H
10) Primary Installation Site: Main Hydraulic Pump Outlet / Main Control Valve (MCV)

Advantages of Ordering from KMN Spare Parts

🔴 Direct sourcing from authorized SANY supply chains ensures 100% component authenticity.
🔴 Extensive inventory of SANY electronic parts allows for same-day dispatch and reduced downtime.
🔴 Competitive global wholesale pricing with flexible MOQ options for repair shops and distributors.
🔴 Professional technical consultancy provided for installation torque and wiring troubleshooting.
🔴 Specialized export packaging ensures the delicate sensor remains intact during international transit.

Step-by-Step Guide to Receive a Quick Quote

⭐ Step 1: Confirm your original part number matches 60238330 or provide your machine’s Serial Number.
⭐ Step 2: Click the “Ask For Quote” button on this page to submit your required quantity and destination.
⭐ Step 3: Our SANY parts specialist will send a formal proforma invoice with shipping costs within 2 hours.
⭐ Step 4: Finalize payment via secure channels (T/T, Credit Card, or Western Union).
⭐ Step 5: Receive your tracking number immediately after the package leaves our central warehouse.

How to contact us quickly

“Ask For Quote” at the bottom right corner of the webpage to start WhatsApp.

📧 E-mail: info@kmnparts.com
📞 Mobile Call: +86 1347 5858 598 (WhatsApp/WeChat)
🏬 Central Headquarter: No 51, Taiping Road, Qingdao City, CHINA
🔶 Branch Office (XCMG WIKA): Xuhai Road, Jiawang District, Xuzhou City, CHINA
🔶 Branch Office (ZOOMLION SANY): Kaiyuan Road, Changsha City, CHINA
🔶 Branch Office (SEM WEICHAI SHANTUI): Caterpillar Industrial Park, Qingzhou, CHINA
