| PART NUMBER | 813505723 |
| PART MODEL | LWG720-015360R-133-NA |
| PART CATALOG | CRANE LIFTING PARTS |
| APPLICABLE TO | XCMG cranes |
| PART NUMBER | 813505723 |
| PART MODEL | LWG720-015360R-133-NA |
| PART CATALOG | CRANE LIFTING PARTS |
| APPLICABLE TO | XCMG cranes |
| MOQ | 1 PCS |
| STOCK STATUS | In stock |
| GENUINE OR OEM | XCMG genuine parts |
| SHIPPING METHOD | Fedex DHL UPS , SEA, AIR.... |
| PAYMENT METHOD | WESTER UNION, T/T, Alipay, WeChat, WISE, XT, WorldFirst |
🔵 Critical LMI Integration: As the heart of the Load Moment Indicator system, the 813505723 sensor tracks real-time boom extension and inclination.
🔵 Industry-Standard Reliability: Manufactured by WIKA (Hirschmann/PAT), this OEM sensor ensures zero signal lag and maximum interference resistance.
🔵 Built for Construction Environments: Features a ruggedized enclosure and a premium internal retraction spring to protect the 133-meter high-tensile cable.
🔵 Seamless Field Integration: Guaranteed 100% technical compatibility with XCMG cranes, allowing for rapid plug-and-play replacement.

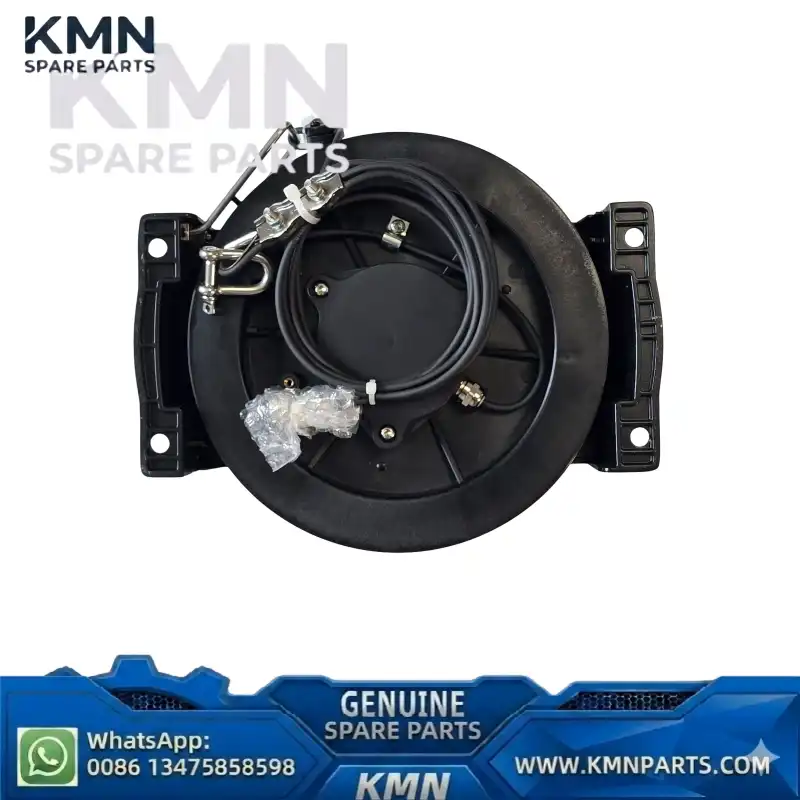

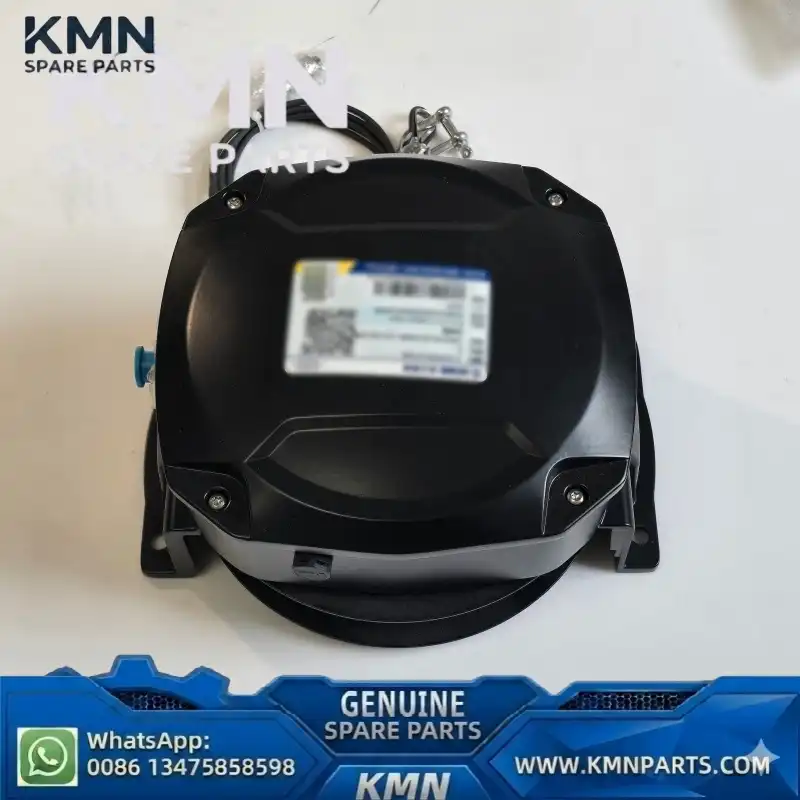

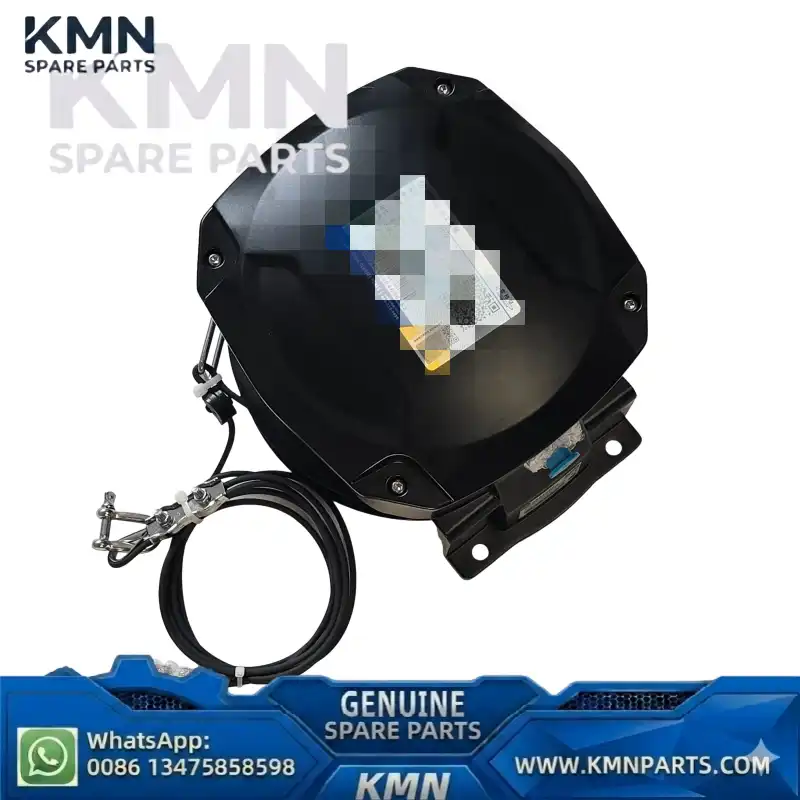

🔵 Component Designation: Length and Angle Sensor (Central Cable Reel)
🔵 Official Part Model: LWG720-015360R-133-NA
🔵 Inventory Part Number (P/N): 813505723
🔵 Original Manufacturer: WIKA (Hirschmann / PAT)
🔵 Designed Brand: XCMG Spare Parts
🔵 Primary Applications (XCMG XCT Series): XCT25, XCT50, XCT75, XCT80, XCT100
🔵 Primary Applications (XCMG QY Series): QY25K, QY25K5, QY50K, QY70K, QY100K
🔵 Guaranteed Factory Authenticity: We exclusively supply genuine, factory-verified parts to ensure the structural integrity of your crane fleet.
🔵 Technical Verification via VIN: Our experts cross-reference every order against official manufacturer databases to guarantee an exact hardware match.
🔵 Global Logistics Excellence: Fast worldwide dispatch through premium couriers (DHL/FedEx/UPS) and efficient air/sea freight solutions.
🔵 Competitive Wholesale Pricing: Enjoy cost-effective, tiered pricing models designed for large-scale procurement and repair facilities.
🔵 Step 1: Share your crane’s specific model, serial number, or a photo of the nameplate.
🔵 Step 2: Verify the required material number (813505723) and needed quantity.
🔵 Step 3: Provide your target country and zip code for accurate freight and delivery lead-time estimation.
🔵 Step 4: Share your China-based freight forwarder’s contact details if local delivery is required.
“Ask For Quote” at the bottom right corner of the webpage to start WhatsApp.
🔵 Contact E-mail: info@kmnparts.com
🔵 WhatsApp / Mobile Call: +86 1347 5858 598
🔵 Central Headquarter: No 51, Taiping Road, Qingdao City, CHINA
🔵 Branch Office (XCMG): Xuhai Road, Jiawang District, Xuzhou City, CHINA
🔵 Branch Office (ZOOMLION SANY): Kaiyuan Road, Changsha City, CHINA
🔵 Branch Office (SEM WEICHAI SHANTUI): Caterpillar Industrial Park, Qingzhou, CHINA
111500089 Turntable
1 111200223 Turntable Assy. 1
2 110500362 Pin 1
3 111201974 Shaft 1
4 111202090 Shaft 1
5 110500365 Clamping Plate 1
6 110500366 Clamping Plate 1
7 805000013 Bolt M16×45 2
8 805300011 Washer 16 2
110500362 Plug Pin
1 110500905 Bolt 1
2 110500364 Pin 1
3 130201139 Handle 1
QY25K.06 Slewing Bearing
1 111201760 Bolt 40
2 111201761 Bolt 40
3 800300061 Slewing bearing 1
111201435 Slewing Mechanism
1 805000715 Bolt M12×25 2
2 805300020 Washer 12 2
3 805300018 Washer 12 26
4 805000023 Bolt M12×50 24
5 800300438 Slewing reducer 1
6 805000716 Bolt M10×30 4
7 805300014 Washer 10 4
8 800300438 Motor 1
9 110500367 Guard plate 1
10 800300328 Slewing reducer 1
11 111201759 Slewing reducer 1
12 800300391 Slewing reducer 1
