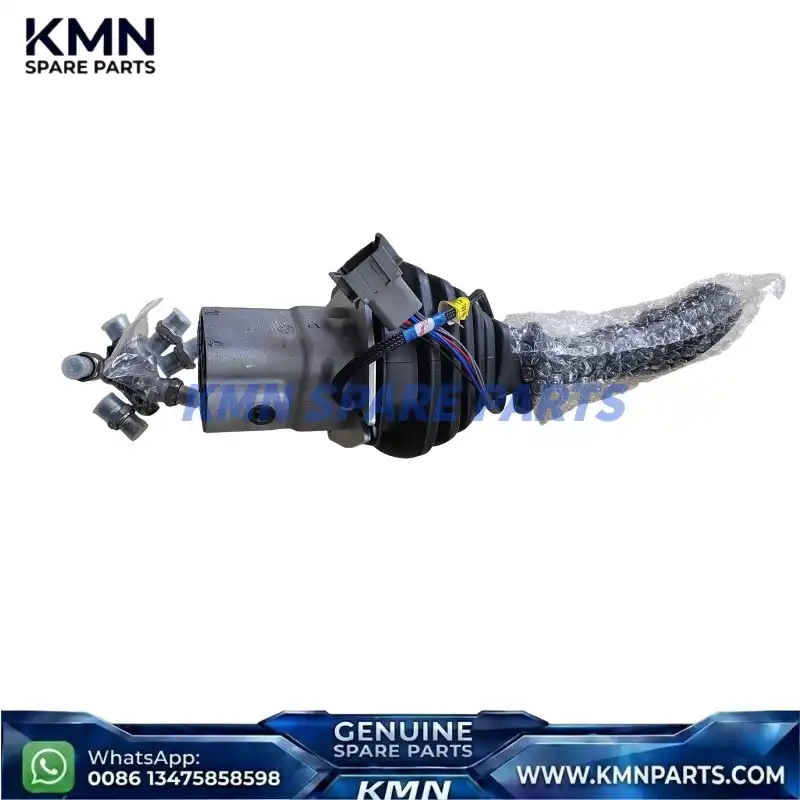

XCMG 420604085 Right Handle Assembly Technical Support
●The Right Handle Assembly serves as the primary operator cab control joystick for compatible XCMG rotary drilling rigs.
●Material number 420604085 identifies the genuine right-hand pilot joystick assembly for drilling rig main winch, rotary drive, mast luffing and auxiliary functions.
●Confirm the complete drilling rig model, serial number, electrical button connectors and pilot hydraulic line fittings prior to order confirmation.
XCMG 420604085 Right Handle Assembly Specifications
●Component Name: Right Handle Assembly (Pilot Joystick / Right Operator Handle)
●System Application: Cab operator pilot hydraulic circuit and multi-function implement control
Compatibility note: Parts directories catalog material number 420604085 under XCMG rotary drilling rig cab control assemblies. Verify your equipment serial number and handle configuration before ordering.
XCMG 420604085 Right Handle Assembly KMN Advantages
Part-number matching for genuine XCMG 420604085 right handle and pilot joystick replacement.
Application review for XCMG XR180D, XR360i and related rotary drilling rig operator cabs.
Verification of handle electrical switches, grip ergonomics, centering spring action and pilot hydraulic valve ports.
Professional sourcing for XCMG foundation machinery, drilling rig electrical components and hydraulic controls.
International procurement and shipping coordination after confirmation.
