XCMG 130301667 XZ16C.26II.4 Outrigger Throttle Bracket Assembly For XCMG Crane
●XCMG 130301667 Throttle Bracket Technical Support

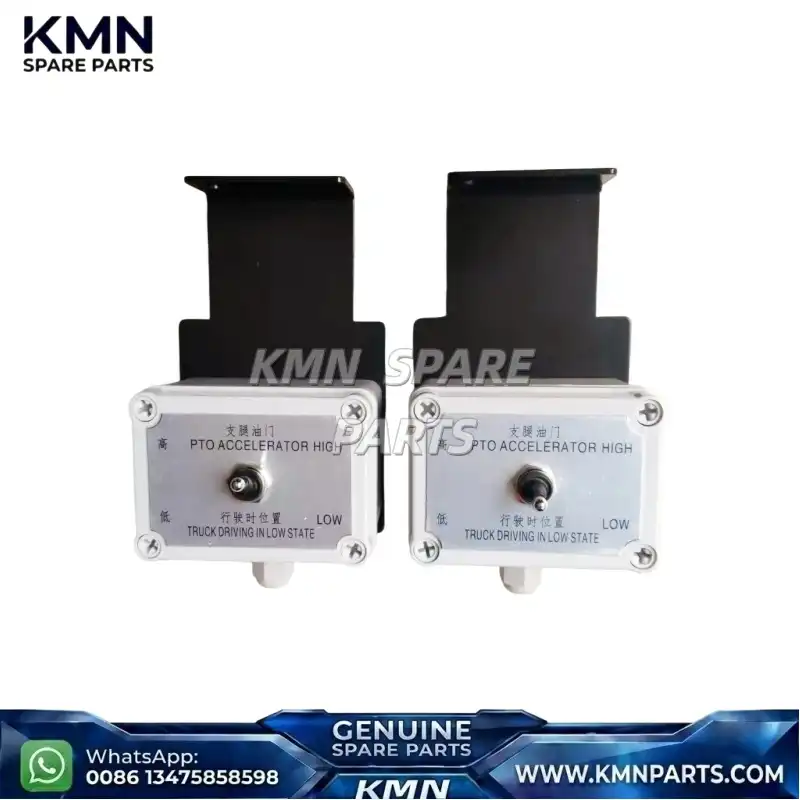

●The 130301667 (Model XZ16C.26II.4) Outrigger Throttle Bracket Assembly ( STAY –LEG THROTTLE SUPPORT UNIT / PTO Accelerator Bracket / Кронштейн акселератора аутригеров / Ensemble support d’accélérateur) is a heavy-duty structural bracket assembly engineered for XCMG truck cranes and mobile cranes.
●Material number 130301667 is mounted on the lower chassis side outrigger control station adjacent to the hydraulic outrigger multi-way control valve (such as the 804011496 outrigger multi-way valve). It serves as the rigid mechanical mounting foundation for the chassis PTO engine throttle adjustment lever and Bowden throttle cable (such as XZ16K.45.6 and XZ16C.69.18). During outrigger horizontal beam extension and vertical jack leveling, it allows the ground operator to manually regulate diesel engine RPM and hydraulic pump delivery rate, ensuring stable hydraulic pressure, smooth outrigger deployment, and reliable mechanical positioning resistant to severe chassis vibration and outdoor weathering.
●Verify mounting bolt hole pattern, throttle cable clamp conduit diameter, structural steel gauge thickness, and anti-corrosion coating finish prior to order confirmation.
●XCMG 130301667 Throttle Bracket Specifications
●Component Name: Outrigger Throttle Bracket Assembly ( Leg Throttle Support Unit)
●System Application: Truck crane chassis outrigger throttle cable anchoring, PTO speed adjustment, and mechanical support
Compatibility note: Cataloged in parts directories and parts manuals for XCMG mobile and truck cranes (including XCMG QY16, QY20B, QY20K5, QY25K, QY25K-II, QY25K5, QY50K, QY50KA, QY70K, XZ16C, XZ16K, XCT25 series truck crane chassis outrigger and PTO throttle control assemblies). Verify machine model and parts diagram before ordering.
●XCMG 130301667 Throttle Bracket KMN Advantages
Part-number matching for genuine XCMG 130301667 (XZ16C.26II.4) outrigger throttle support unit replacement.
Application support for XCMG truck cranes, all-terrain cranes, and special vehicle chassis.
