SANY 61016446 Truck Crane CAN Bus Control Panel For SANY Crane
●SANY 61016446 Bus Panel Technical Support

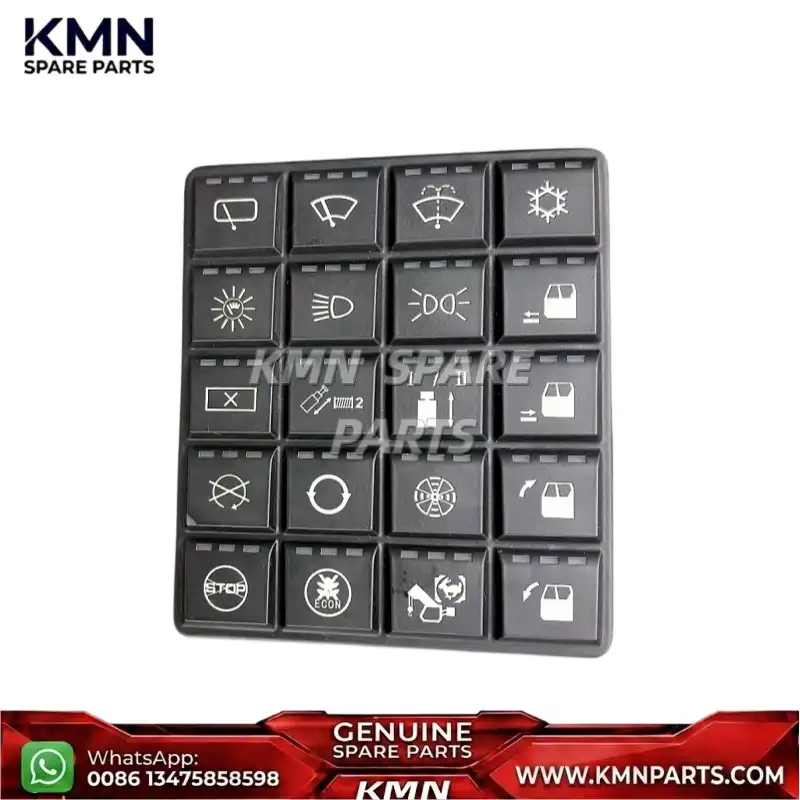

●The 61016446 (Model 5×4-25t / 60245992) Bus Panel (CAN Bus Control Panel Switch / Панель переключения / Панель шины CAN / Panel de interruptores de bus CAN) is an intelligent digital CAN-bus keypad assembly engineered for SANY mobile and truck cranes.
●Material number 61016446 is mounted directly onto the crane uppercarriage operator cabin console (such as the STC350T uppercarriage console assembly). Featuring an array of sealed backlit push buttons with integrated status LEDs, it allows the crane operator to execute key operational commands—including boom telescoping selection, main and auxiliary winch high/low speed switching, hydraulic outrigger safety interlocks, swing brake release, over-hoist limit bypass, and exterior work lighting. It encodes operator button presses into high-speed digital CAN-bus (J1939) data packets transmitted directly to the crane main PLC / IFM controller, drastically simplifying in-cab wiring harnesses while improving diagnostic telemetry and tactile feedback.
●Verify button key layout (5×4 matrix configuration), CAN-bus baud rate / protocol parameters, 24V DC power connector pinout, and housing mounting dimensions prior to order confirmation.
●SANY 61016446 Bus Panel Specifications
●Component Name: Bus Panel (CAN Bus Control Panel Switch )
●System Application: Truck crane uppercarriage electrical function switching, CAN-bus communication, and PLC command transmission
Compatibility note: Cataloged in parts directories and parts manuals for SANY mobile and truck cranes (including SANY STC250, STC250-5, STC350, STC350T, STC500, STC800 series truck crane uppercarriage console assemblies). Verify machine model and wiring diagram before ordering.
●SANY 61016446 Bus Panel KMN Advantages
Part-number matching for genuine SANY 61016446 (5×4-25t) truck crane CAN-bus control panel replacement.
Application support for SANY truck cranes, all-terrain cranes, and lifting equipment.
Quality verification covering CAN-bus communication packet stability, silicone button tactile endurance, LED backlight illumination, and weather-sealed enclosure integrity.
Professional sourcing for SANY crane controllers, LMI displays, throttle knobs (60117463), pressure switches (60347455), and joysticks.
Export-standard protective packaging and international logistics coordination.
