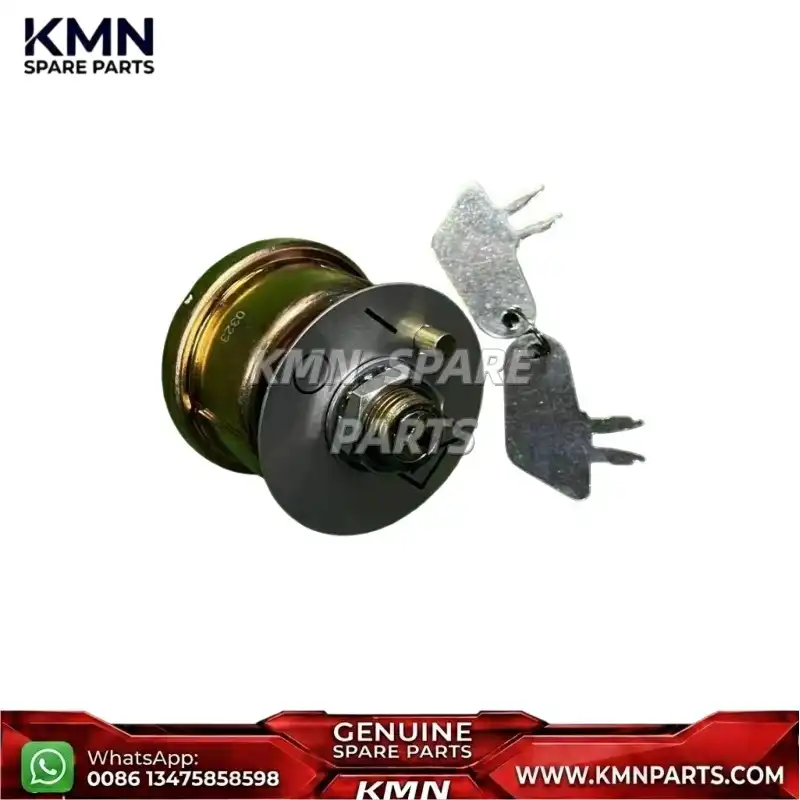

SANY 60278563 AES-1411-18 Main Power Rotary Switch
●SANY 60278563 Rotary Switch Technical Support
●The 60278563 (Model AES-1411-18) Main Power Switch ( Main Switch, Battery / Главный выключатель источника питания / Выключатель массы) is a heavy-duty 24V DC battery master disconnect switch for compatible SANY hydraulic excavators and wheel loaders.
●Material number 60278563 is installed directly in the chassis battery compartment or central power distribution frame adjacent to the battery negative cable (such as the 13054705 battery ground cable). Operated via a robust manual rotary knob mechanism, it directly connects or isolates the high-amperage 24V DC battery circuit from the machine electrical systems. This manual cut-off prevents parasitic battery discharge during equipment storage, ensures electrical isolation during mechanical servicing, and enables emergency power shut-down in case of short circuits.
●Verify terminal stud diameter (M10/M12 copper posts), rated continuous and peak current (A capacity), mounting plate hole spacing, and rotary knob indexing detent feel prior to order confirmation.
●SANY 60278563 Rotary Switch Specifications
●Component Name: Main Power Switch (Rotary Battery Disconnect Switch)
●Material Number: 60278563
●Model / Spec: AES-1411-18 (Heavy-Duty 24V DC Battery Master Switch)
●System Application: Battery master power isolation, maintenance circuit protection, and parasitic drain prevention
Compatibility note: Cataloged in parts directories and parts manuals for SANY crawler excavators and wheel loaders (including SANY SY215, SY215C, SY245, SY245C9, SY330, SY980 series excavators and SYL956, SYL956H series wheel loader battery power distribution assemblies). Verify machine model and wiring diagram before ordering.
●SANY 60278563 Rotary Switch KMN Advantages
Part-number matching for genuine SANY 60278563 (AES-1411-18) main battery disconnect rotary switch replacement.
Application support for SANY medium, heavy-duty excavators, and wheel loaders.
